QDF2PNGNew

This tool creates a rectilinear projection of data saved in qdf files.

Code: QDF2PNGNew.cpp QDFImageExtractor.cpp

Usage

./QDF2PNGNew -g <qdf_grid> -q <qdf_data>[,<qdf_data>]*]
   -s <w>x<h> -o <outpat>  -a <arrayspec>,[<arrayspec>]*
  [-c <operation>] [-r <lon_roll>] [-w <ww>x<hw>+<ox>+<oy> ][-t <text>[:<pos>] [-v]

or

./QDF2PNGNew -g <qdf_grid> -f <batch_file>
   -s <w>x<h>  -a <arrayspec>,[<arrayspec>]*
  [-c <operation>] [-r <lon_roll>] [-t <text>[:<pos>]] [-v]

where

qdf_grid

QDF containing a grid and geography.

qdf_data

QDF file containing data to be extracted which is not contained in <qdf_grid>.

batch_file

File containing lines of the form:

<timestamp>":"<qdf_data>[,<qdf_data>]*":"<output>
w

Width of output png.

h

Height of output png.

ww

Width of depicted area in degrees (default 360).

hw

Height of depicted area in degrees (default 180).

ox

Longitude offset of depicted area (default 0).

oy

Latitude offset of depicted area (default -90).

outpat

Pattern for output pngs: the substring ‘###’ will be replaced with the array name.

arrayspec

Array specification. Format:

array_spec ::= <array_name>[@<index>][|<lookup>]
array_name  :   name of array (s. below)
index       :   index of qdf in which to look (0: qdf_geogrid, 1-N: qdf-data in given order)
lookup      :   info for lookup, with format <lookup_name>[:<data>]* (s. below)
operation

Compositing operator (currenly only: ‘over’ (simple alpha compositing)).

longroll

Longitude for smallest x value (rolls image). To have all of africa on the left side of the image you should set roll to -25.

text

Text to be rendered on image.

pos

position of text in image (BL, CL, UL, BC, CC, UC, BR, CR, UR).

../images/textlayout.png
-v

Verbose output.

Array Names

These are the array names used in arrayspec along with their meaning, and the array’s location in the qdf file (if it exists):

array name

meaning

dataset

lon

longitude

Geography/Longitude

lat

latitude

Geography/Latitude

alt

altitudes

Geography/Altitude

ice

ice cover

Geography/IceCover

water

water

Geography/Water

coastal

coastal

Geography/Coastal

temp

temperature

Climate/AnnualMeanTemp

rain

rainfall

Climate/AnnualRainfall

npp

total npp

NPPVegetation/NPP

npp_b

base npp

NPPVegetation/BaseNPP

dist

travel distance

MoveStats/Dist

time

travel time

MoveStats/Time

pop

population count

(calculated)

agent

average of an agent variable

(calculated)

Lookups

The available Lookups and their parameters:

rainbow

../images/xxx_rainbow.png

Prameters: min, max
A rainbow going from blue (min) over green to red (max),
with values > max being magenta and values < min being cyan

rainbow2

../images/xxx_rainbow2.png

Parameters: min, max
A rainbow going from red (min) over green to blue (max),
with values > max being magenta and values < min being cyan

geo

../images/xxx_geo.png

Prameters: min, sealevel, max
Values below sealevel are blue, above sealevel from green to magenta

geo2

../images/xxx_geo2.png

Parameters: min, sealevel, max
Values below sealevel are blue, above sealevel from green to red, values abvove max are white.

twotone

../images/xxx_twotone.png

Parameters: SepValue, RGBA1, RGBA2
Values below SepValue are drawn with color RGBA1, values above with RGBA2.
(Color format: #RRGGBBAA where RR, GG, BB and AA are hex values)

fadeout

../images/xxx_fadeout.png

Parameters: min, max, RGBAmax.
Goes linearly from totally transparent to RGBAmax.

fadeto

../images/xxx_fadeto.png

Prameters: min, max, RGBAmin, RGBAmax.
Goes linearly from RGBAmin to RGBAmax.

Call example

QDF2PNGNew -g ${TUT_TOP}/tutorial_06/output/tutorial_06/tut_pop-sapiens_SG_005000.qdf \
           -q ${TUT_TOP}/tutorial_06/output/tutorial_06/tut_pop-sapiens_SG_005000.qdf \
           -s 720x360 -o step_005000.png \
           -a 'alt|geo:-6000:0:6000,pop_sapiens|fadeout:0:10:#FFFF00FF'  \
           -r -25 -c over -t "step 5000":BL:20

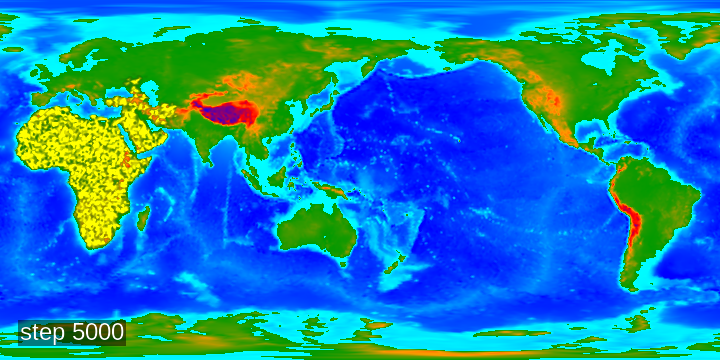

This creates this image

../images/step_005000.png
