compare_attrs.py

With this script you can list and compare the attributes of one or more populations. There are various ways to highlight the differences between the populations.

This tool requires the python modules h5py and numpy to be installed.

Code: compare_attrs.py

Usage

${QHG4_DIR}/tools_qdf/compare_attrs.py [-d <prop>[,<prop>]] (<qdf_file>[:<pop>])*

${QHG4_DIR}/tools_qdf/compare_attrs.py [-d <propshorts>] (<qdf_file>[:<pop>])*

where

qdf_file

Name of a QDF file.

pop

Name of species to show attributes of (if omitted, the attributes of all populations in this file are shown).

prop

Display properties settings, with the following format.

prop  ::= "global:"<state>   | "action:"<state>    | "hilite:"<hilite_state>     | "diffonly:"<state> |
          "variants:"<state> | "numagents:"<state> | "shortnames:"<short_state>  | "equalsize:"<state>
state ::= "on" | "off"
propshorts

A string consisting of display control characters (see the list below).

Display Properties

global:       [on]     show "global" attributes not belonging to an action
action:       [on]     show "action" atributes
diffonly:     [off]    only show rows with different values
numagents:    [on]     show number of agents in header line
short_names:  [none]   shorten names:
              'none'   use names as given
              'path'   remove path
              'alias'  use short alias names: qdf_*
equalsize:    [off]   same width for all columns
hilite_state: [file_group] use colors to hilite differences
               'none'        no hilighting
               'simple'      hilight entire line if it contains differences
               'file_diff'   hilight entries differing from the first one with the same color within a file
               'group_diff'  hilight groups of equal entries with the same color

Display Control characters

The display properties can be passed as a string composed of the following characters

'G' or 'g' - turn on or off property 'global'
'A' or 'a' - turn on or off property 'action'
'D' or 'd' - turn on or off property 'diffonly'
'N' or 'n' - turn on or off property 'numagents'
'E' or 'e' - turn on or off property 'equalsize'
'S' or 's' - turn on or off property 'shortnames'
             'S' must be folllowed by one of these characters:
                 'n' - none
                 'p' - path
                 'a' - alias
'H' or 'h' - turn on or off property 'hilite'
             'H' must be followed by on of these characters:
                 'n' - none
                 's' - simple
                 'd' - diff grouping
                 'f' - file grouping

The following two parameters are equivalent

-d hilite_state:file_diff,short_names:alias,diffonly:on,equalsize:on,global:off

-d HfSaDeg

Example

${QHG4_DIR}/tools_qdf/compare_attrs.py -d HdSaADeGn  xxx.qdf yyy.qdf zzzz.qdf

(Highlight differences, no short names, show action attributes, show differences only, don’t force uniform column width, show global attributes, dont show number of agents)

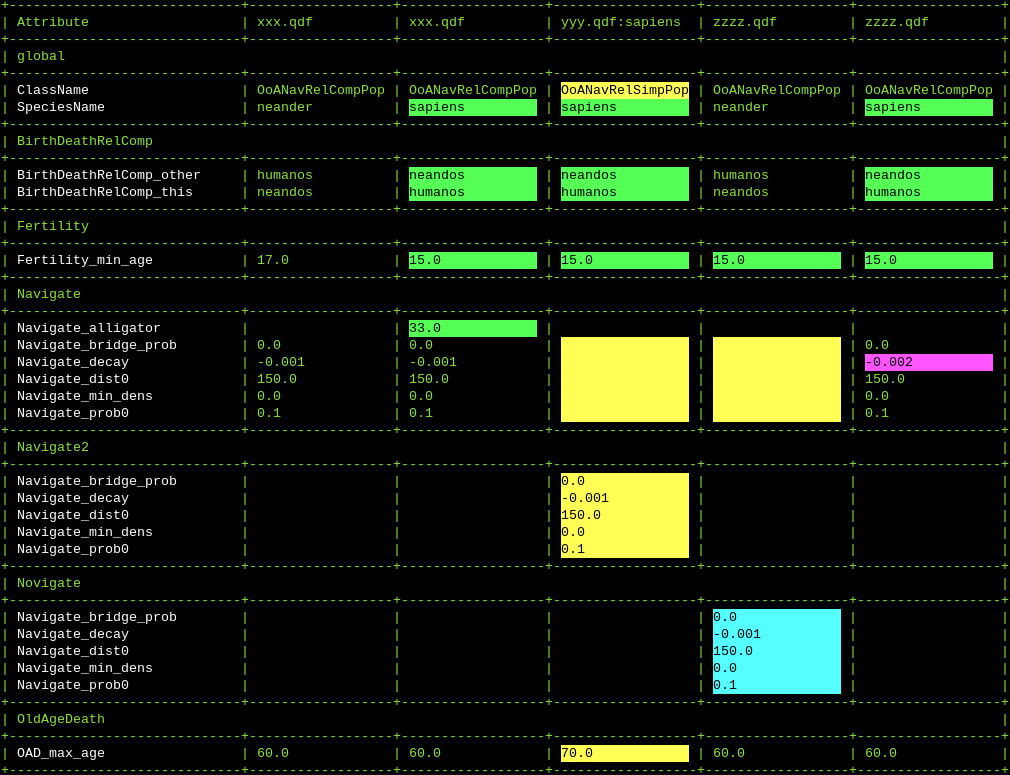

This command gives an output like this:

../images/compare_attrs2.png
