VectorImport

This tool importgs GIS vector data for rivers, in particular Polyline data into the m_adWater array in the geography group of a QDF file.

Code: VectorImport.cpp

Usage

$QHG4_DIR}/import/VectorImport -s <surf_file>  -q <qdf_file>
                               -v <shp_file> -d <dbf_file> -f <field_name>[:<match_val>[:<use_val>]]
                              [-o <output_qdf>]

where

surf_file

a surface description file (.ico, .ieq, …). Can be omitted if the grid of qdf_gile is an EQsahedron.

qdf_file

qdf file corresponding to <surf_file>.

shp_file

SHP file containig vector data.

dbf_file

DBF file corresponding to <shp_file>.

field_name

name of field in <dbf_file> to extract. To see all possible field names, call with ‘-d <dbf_file> only.

matchval

target value to select indexes.

useval

value to use instead of matchval.

output_qdf

name of output qdf to create. If omitted and input_qdf is given, input_qdf will be modified

  • <surf_file> and <ign_file> are needed to create a cell grid with Geography.

  • all points contained in the poly lines are extracted and the values for <field_name> are used as entries in the QDF files “Water” array corresponding to the points’ coordinates

  • If <match_val> is specified, only polylines whose <field_name> value equals <match_val> are used, and the array is set to <use_val> (or 1.0) in the corresponding places

Examples

List the field names:

./VectorImport -d ~/rivers/ne_10m_rivers.dbf

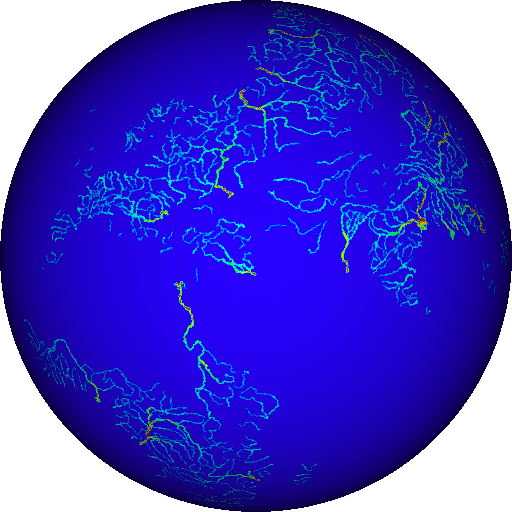

Convert (using CellGrid and Geo from qdf file):

./VectorImport -q GridSG_ieq_256.qdf -v ~/rivers/ne_10m_rivers.shp -d ~/rivers/ne_10m_rivers.dbf -f strokeweig -o rivers_1a_256.qdf
../images/water_rivers.png
