NPPCapacity

The class NPPCapacity is derived from Action and is used to calculate per-cell capacities based on NPP, sweetwater and coastal effects.

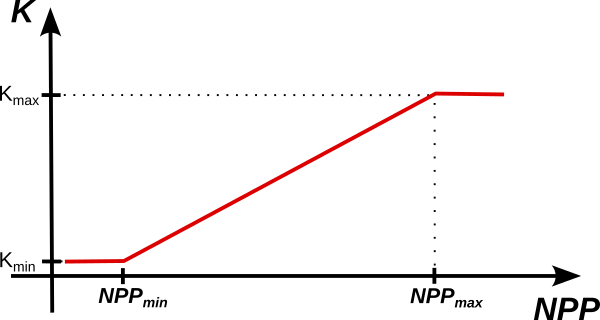

First an initial capacity is calculated from the local NPP using a ramp function. Then, if water is present in the cell, the capacity is multiplied with a “water factor”. If the cell is close to the coast (i.e. if the entry in Geography’s Coastal array is greater than 0), the capacity is multiplied by a coastal factor.

../../images/npp_ramp.png

The attributes regarding coastal and water only work if the geography has the appropriate data in its m_AdCoastal and m_adWater arrays. Usually these arrays are added to the gridfile by means of the tools VectorImport and Coastal.

Code:
NPPCapacity.h
NPPCapacity.cpp

Attrinutes

ATTR_NPPCAP_NAAME

“NPPCapacity”

action name

ATTR_NPPCAP_WATERFACTOR_NAME

“NPPCap_water_factor”

water factor

ATTR_NPPCAP_COASTALFACTOR_NAME

“NPPCap_coastal_factor”

coastal factor

ATTR_NPPCAP_COASTAL_MIN_LAT_NAME

“NPPCap_coastal_min_latitude”

minimum latitude for coastal

ATTR_NPPCAP_COASTAL_MAX_LAT_NAME

“PPCap_coastal_max_latitude”

maximum latitude for coastal

ATTR_NPPCAP_NPPMIN_NAME

“NPPCap_NPP_min”

minimum NPP value

ATTR_NPPCAP_NPPMAX_NAME

“NPPCap_NPP_max”

maximum NPP Value

ATTR_NPPCAP_KMAX_NAME

“NPPCap_K_max”

maximum capacity

ATTR_NPPCAP_KMIN_NAME

“NPPCap_K_min”

minimum capacity

ATTR_NPPCAP_EFFICIENCY_NAME

“NPPCap_efficiency”

efficiency

Public Methods

constructor

NPPCapacity(SPopulation<T> *pPop, SCellGrid *pCG, std::string sID, WELL512 **apWELL, double *adCapacities, int iStride);
pPop

A pointer to the SPopulation object performing this action.

pCG

A pointer to the SCellGrid object on which the simulation runs.

sID

An ID for this action.

apWELL

A pointer to an array of WELL512 random number generators (one for each thread).

adCapacities

Array to hold calculated capacity values (can be used by WifghtedMove, for example);

iStride

Distance between original elements in adCapacities. Usually thios is 1.

Creates a NPPCalc objects (in case temoerature and precipitation nee to be converted to NPP.

destructor

virtual ~NPPCapacity();

The destructor deletes the NPPCalc object.

preLoop

virtual int preLoop();

Performs sanity checks and recalculates capacities.

extractAttributesQDF

virtual int extractAttributesQDF(hid_t hSpeciesGroup);
hSpeciesGroup

HDF handle for the species group to read from.

This method reads the atttributes of this action from a QDF.

writeAttributesQDF

virtual int writeAttributesQDF(hid_t hSpeciesGroup);
hSpeciesGroup

HDF handle for the species group to write to.

This method writes the attributes of this action to the specified group in a QDF file.

tryGetAttributes

virtual int tryGetAttributes(const ModuleComplex *pMC);
pMC

A ModuleComplex object.

Extracts the action’s attributes from the ModuleComplex object.

modifyAttributes

virtual int modifyAttributes(const std::string sAttrName, double dValue);
sAttrName`

Name of attribute to change.

dValue

Value to set the attribute to.

This method can change the values of
water factor (ATTR_NPPCAP_WATERFACTOR_NAME),
coastal factor (ATTR_NPPCAP_COASTALFACTOR_NAME).
coastal maximum latitude (ATTR_NPPCAP_COASTAL_MAX_LAT_NAME).
coastal minimum latitude (ATTR_NPPCAP_COASTAL_MIN_LAT_NAME),
\(NPP_{min}\) (ATTR_NPPCAP_NPPMIN_NAME),
\(NPP_{max}\) (ATTR_NPPCAP_NPPMAX_NAME),
\(K_{min}\) (ATTR_NPPCAP_KMIN_NAME),
\(K_{max}\) (ATTR_NPPCAP_KMIN_NAME), or
efficiency (ATTR_NPPCAP_EFFICIENCY_NAME)

isEqual

virtual bool isEqual(Action<T> *pAction, bool bStrict);
pAction

Pointer to an action object to compare with this.

bStrict

Strictness of comparisons (ignored here).

pAction is equal to this, if it is a NPPCapacity object whose attributes match those of this.

recalculate

virtual void recalculate();

Recaclulates the Coacity based on NPP, water and coastal distance.

notify

virtual void notify(Observable *pObs, int iEvent, const void *pData);
pObs

The observable which sends the event.

iEvent

ID of the event.

pData

Pointer to data pertaining to the event. It must be cast to the correct type.

(implementation of the Observer interface)
If the event tyoe is EVENT_ID_FLUSH, the update flag is set, if any of the Evaluator objects’ update flag is set.
